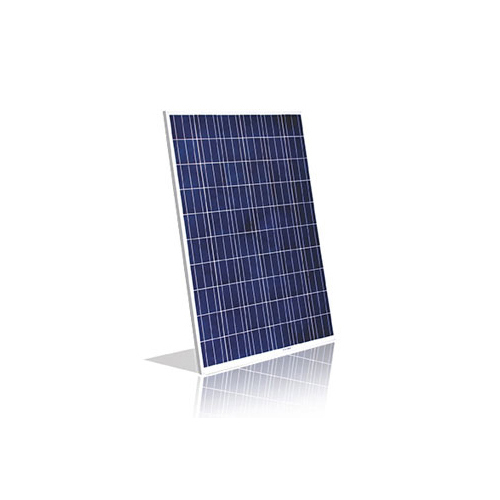

Send InquirySolar Panel
Product Details:
- Supply Ability : 50 , , Piece Per Week
8000 INR/Piece
X
Price And Quantity
- 8000 INR/Piece
- 30 , , Piece
- 7800.00 - 9000.00 INR/Piece
Trade Information
- 50 , , Piece Per Week
- 1 Week
- 4 pieces set
- All India
Product Description
This optimum quality Solar Panel is known among the customers for its miscellaneous characteristics which includes flawless appearance, robust construction, easy installation, high performance efficiency, longer service life and more. Besides this, the said product is used for generating electricity by taking the light from sun and converting it into current. Furthermore, Solar Panel ensures low maintenance, anti-corrosive nature, cost effectiveness, dimensional accuracy as well as light weight and compact design. You can get this in various thickness, shapes, sizes and specifications according to your
Applications
- Solar Street Light
- Solar Traffic Sings
- Green Telecom Towers
- Rural Electrification
- Solar Lantern
- Solar Water Pumps
- Solar Home Lighting
- Electric Vehicle Charging Stations
Technical Specifications
| Module Type | DS10 | DS20 | DS40 | DS50 | DS60 | DS75 | DS80 | DS100 | DS120 | DS125 | DS130 | DS150 |
| Peak power watts (pmax) | 10 | 20 | 40 | 50 | 60 | 75 | 80 | 100 | 120 | 125 | 130 | 150 |
| Maximum power voltage (Vmp) | 17.85 | 17.15 | 17.84 | 17.89 | 18.04 | 17.99 | 18.09 | 17.99 | 17.79 | 17.90 | 17.99 | 17.85 |
| Maximum power current (Imp) | 0.62 | 1.18 | 2.25 | 2.80 | 3.33 | 4.17 | 4.43 | 5.57 | 6.75 | 6.99 | 7.24 | 8.41 |
| Open-circuit voltage (Voc) | 21.65 | 21.44 | 21.95 | 21.77 | 21.66 | 22.12 | 22.24 | 21.84 | 21.58 | 21.65 | 21.80 | 22.58 |
| Short-circuit current (Isc) (A) | 0.69 | 1.27 | 2.44 | 3.04 | 3.67 | 4.49 | 4.76 | 6.11 | 7.36 | 7.60 | 7.79 | 8.70 |
| Module efficiency STC (%) | 9.24 | 12.25 | 13.07 | 13.55 | 14.21 | 14.74 | 15.72 | 13.67 | 14.20 | 14.20 | 15.39 | 15.19 |
| Operating Temperature (oC) | -40oC to +85oC | |||||||||||
| Maximum system voltage | 1000V DC (IEC) | |||||||||||
| Maximum series fuse rating | 15A | |||||||||||
| Temperature characteristics (TC) and Permission operating conditions | ||||||||||||
| Specification | Data | |||||||||||
| Tc of open circuit voltage (B) | -0.35+0.01%/oC | |||||||||||
| Tc of Short circuit current (a) | 0.50 ± 0.02% / oC | |||||||||||
| Tc Power (Y) | -0.04 ± 0.02% / oC | |||||||||||
| Maximum System Voltage | 1000 V (TUV) | |||||||||||
| NOCT | 45oC ± 2oC | |||||||||||
| Temperature Range | -40oC to 85oC | |||||||||||
| Specification | Data | |||||||||
| Cell Arrangement | 36Cells (9x4) | |||||||||
| Dimensions : Length (mm) | 305 | 460 | 460 | 555 | 635 | 765 | 765 | 1100 | 1155 | 1485 |
| Dimensions : Width (mm) | 335 | 355 | 666 | 665 | 665 | 665 | 665 | 665 | 665 | 665 |
| Dimensions : Height (mm) | 18 | 18 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
| Weight | 1.4kg | 2.8kg | 3.8kg | 4.6kg | 5.3kg | 6.8kg | 6.8kg | 8.0kg | 10kg | 10.6kg |
| Mounting Hole to Hole Distance (mm) | NA | 280 | 220 | 300 | 500 | 600 | ||||
| Front Cover | 3.2mm ARC Glass | |||||||||
| Frame Material | Anodized Aluminum Alloy | |||||||||
| Junction Box | IP 65 OR IP 67 | |||||||||
| Product Warranty | 5 Years | |||||||||
| Module Type | DS200(12V) | DS200(24V) | DS250 | DS300 | DS305 | DS310 | DS315 |
| Peak Power Watts (Pmax) | 200 | 200 | 250 | 300 | 305 | 310 | 315 |
| Maximum Power Voltage (Vmp) | 18.03 | 36.21 | 30.20 | 36.20 | 36.30 | 36.40 | 36.50 |
| Maximum Power Current (Imp) | 11.1 | 5.53 | 8.30 | 8.30 | 8.41 | 8.52 | 8.64 |
| Open-circuit Voltage (Voc) | 22.32 | 43.65 | 37.20 | 44.60 | 44.80 | 44.90 | 45 |
| Short-circuit Current (Isc) (A) | 11.94 | 6.08 | 8.87 | 8.87 | 8.97 | 9.08 | 9.10 |
| Module Efficiency STC (%) | 15.39 | 15.39 | 15.48 | 15.60 | 15.90 | 16.10 | 16.25 |
| Operating Temperature (oC) | -40oC-+85oC | ||||||
| Maximum system Voltage | 1000V DC (IEC) | ||||||
| Maximum Series Fuse Rating | 15A | ||||||
| Temperature Characteristics (TC) and Permission Operating Conditions | |||||||
| Specification | Data | ||||||
| Tc of Open Circuit Voltage (B) | -0.35 ± 0.01%/oC | ||||||
| Tc of Short Circuit Current (a) | 0.50 ± 0.02% /oC | ||||||
| Tc Power (Y) | -0.04 ± 0.02% /oC | ||||||
| Maximum System Voltage | 1000 V (TUV) | ||||||
| NOCT | 45oC ± 2oC | ||||||
| Temperature Range | -40oC to 85oC | ||||||
| Efficiency Reduction at 200W/m2, 25oC | >5% | ||||||
| Maximum Reserve Current (A) | 12.5 | ||||||
| Mechinal Data | |||||||
| Specification | Data | ||||||
| Cell Type | Multi crystalline 6†| ||||||
| Cell Arrangement | 72Cells (12x6) | 60Cells (6x10 | 72Cells (12x6) | ||||
| Dimensions | 1320x982x34 | 1640x990x42 | 1960x992x42 | ||||
| Weight | 12.0Kg | 18.5Kg | 22.0Kg | ||||
| Mounting Hole to Hole Distance (mm) | 600 | 841 | 1155 | ||||
| Front Cover | 3.2mm ARC Glass | ||||||
| Frame Material | Anodized Aluminum Alloy | ||||||
| Junction Box | IP 65 OR IP 67 | IP 65 OR IP 68 | |||||
| Cables | 4mm (IEC) / 4mm & 12 AWG 1000V (1000V UL) 1000mm | ||||||
| By Pass Diodes | 3 Pcs. | ||||||
| 40 Hq Container | 800 Pcs. | 728 Pcs. | 572 Pcs. | ||||
| Product Warranty | 5 Years | ||||||
| Performance Guaranteed | Guarantee Power Output of 90% for 10 years and 80% for 25 years | ||||||
