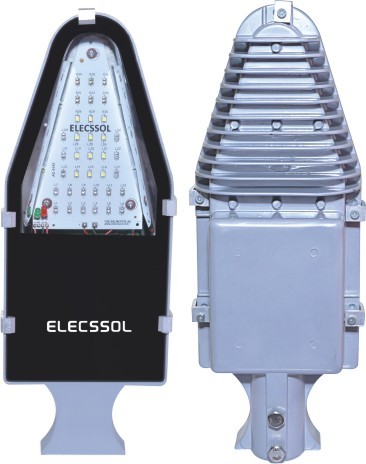

Send InquiryAc Light
Product Details:
- Supply Ability : 4000 Piece Per Week
120 to 300 INR/Piece
X
Price And Quantity
- 100 Piece
- 120 to 300 INR/Piece
- 120.00 - 300.00 INR/Piece
- 150 to 350 INR/Piece
Trade Information
- 4000 Piece Per Week
- 7 Days
Product Description
Product Details
Techno Small Series
|
Product Code |
Wattage |
Dimension |
Weight |
Pipe Dia (mm) |
|
DS-TS-15W |
15 Watt |
360mm x 140mm |
1.4 kg |
34mm max |
|
DS-TS-20W |
20 Watt |
360mm x 140mm |
1.4 kg |
34mm max |
|
DS-TS-25W |
25 Watt |
360mm x 140mm |
1.4 kg |
34mm max |
|
DS-TS-30W |
30 Watt |
360mm x 140mm |
1.4 kg |
34mm max |
Techno Big Series
|
Product Code |
Wattage |
Dimension |
Weight |
Pipe Dia (mm) |
|
DS-TB-40W |
40 Watt |
395mm x 180mm |
2.1 kg |
38mm max |
|
DS-TB-50W |
50 Watt |
395mm x 180mm |
2.1 kg |
38mm max |
|
DS-TB-60W |
60 Watt |
395mm x 180mm |
2.1 kg |
38mm max |
Technical Specifications
|
Nominal Input Voltage |
240V AC, 50 Hz |
|
Power Factor |
> 0.95 @ 240 Vac |
|
Control Gear |
In-built electronic driver with APFC & THD < 10%, output short circuit, over voltage cut-off Protection |
|
LED Colour Temperature |
5700 K- 6500 K |
|
Beam Angle |
120 Deg. LED Beam Angle |
|
Optical Cover |
High efficiency toughened glass cover for extra protection |
|
Lumens Output |
> 120 LM/W |
|
Housing Material |
Aluminium Pressure Die Cast |
|
Protection Rating |
IP 65 |
|
Warranty |
2 Years |
