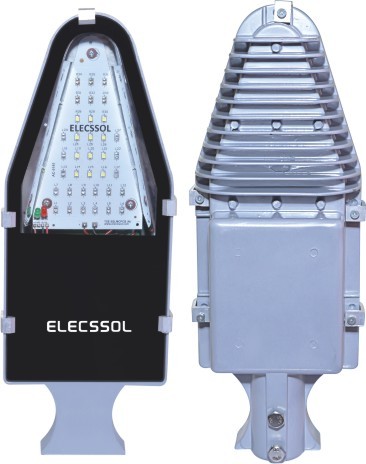

Send InquiryAC Led Street Light
Product Details:
- Supply Ability : 4000 Piece Per Week
nan INR/Piece
X
Price And Quantity
- 120.00 - 300.00 INR/Piece
- nan INR/Piece
- 150 to 350 INR/Piece
- 100 Piece
Trade Information
- 4000 Piece Per Week
- 7 Days
Product Description
Product Details
Techno Small Series
| Product Code | Wattage | Dimension | Weight | Pipe Dia (mm) |
| DS-TS-15W | 15 Watt | 360mm x 140mm | 1.4 kg | 34mm max |
| DS-TS-20W | 20 Watt | 360mm x 140mm | 1.4 kg | 34mm max |
| DS-TS-25W | 25 Watt | 360mm x 140mm | 1.4 kg | 34mm max |
| DS-TS-30W | 30 Watt | 360mm x 140mm | 1.4 kg | 34mm max |
Techno Big Series
| Product Code | Wattage | Dimension | Weight | Pipe Dia (mm) |
| DS-TB-40W | 40 Watt | 395mm x 180mm | 2.1 kg | 38mm max |
| DS-TB-50W | 50 Watt | 395mm x 180mm | 2.1 kg | 38mm max |
| DS-TB-60W | 60 Watt | 395mm x 180mm | 2.1 kg | 38mm max |
Technical Specifications
| Nominal Input Voltage | 240V AC, 50 Hz |
| Power Factor | > 0.95 @ 240 Vac |
| Control Gear | In-built electronic driver with APFC & THD < 10%, output short circuit, over voltage cut-off Protection |
| LED Colour Temperature | 5700 K- 6500 K |
| Beam Angle | 120 Deg. LED Beam Angle |
| Optical Cover | High efficiency toughened glass cover for extra protection |
| Lumens Output | > 120 LM/W |
| Housing Material | Aluminium Pressure Die Cast |
| Protection Rating | IP 65 |
| Warranty | 2 Years |
